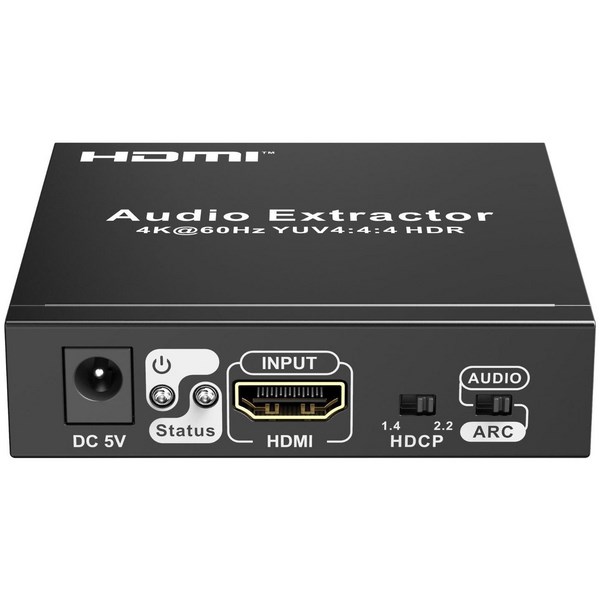

This Lenkeng HDMI Audio Extractor is a versatile device that allows you to extract audio signals from your HDMI source and output them in various formats. The stripped audio signal is output to the amplifier via SPDIF, COAXIAL or 3.5mm R/L audio port. Support ARC (audio return channel) function strips the audio signal from the HDMI ARC of the TV, then transmits the audio signal to an amplifier by SPDIF or COAXIAL audio port. Support to convert HDCP1.4 to HDCP2.2, HDCP2.2 to HDCP1.4 support HDMI resolution up to 4K@60Hz. With its compact and sleek design, this extractor is easy to install and fits seamlessly into AV transmission applications of conference systems, multimedia education systems, any home entertainment theatre setups, and more.
• HD type: 4K Ultra HD
• Maximum resolution: 3840x2160 pixels

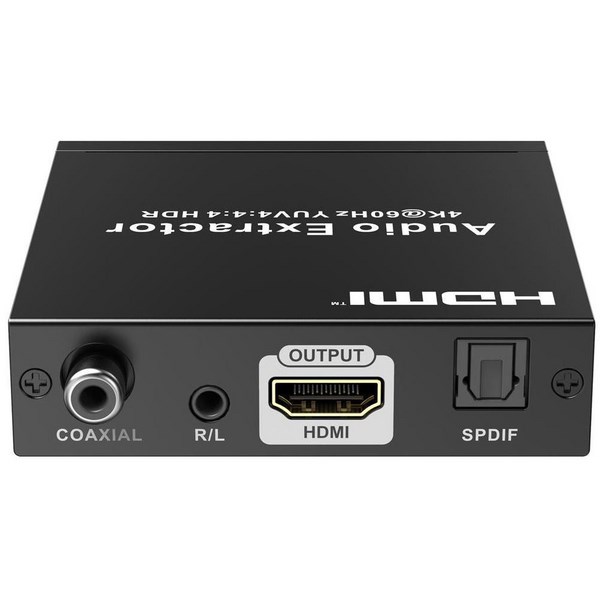

• 1 x HDMI input converted to 1 x HDMI Video + (SPDIF+R/L+COAXIAL) Audio output
• SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously
• R/L stereo output is not available when using the ARC function
• Supports HDMI 2.0; HDCP2.2; and HDCP1.4
• Receiver supports 3.5mm stereo audio output
• Automatically adjusts parameters to match different network cables and achieve the best display performance
• Lightning, Surge, and ESD Protection
• Support to convert HDCP1.4 to HDCP2.2; HDCP2.2 to HDCP1.4
• Support 3D video format
• Colour: Black
• Dimensions: 80x80x19.5mm (wxdxh)
• Model number: LKV3061
