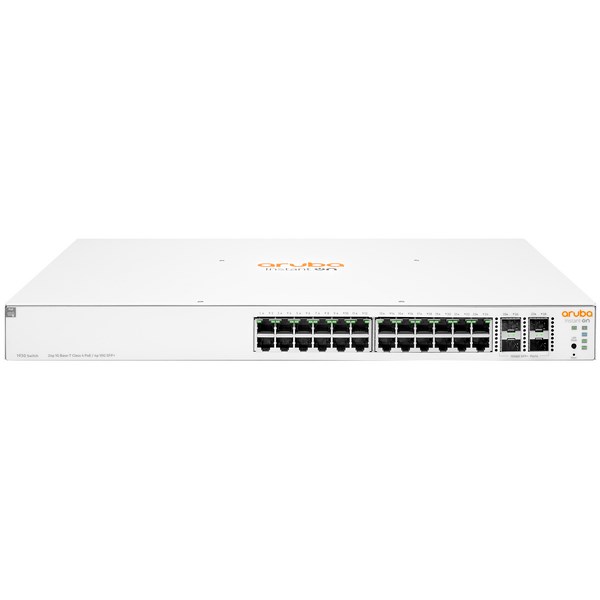

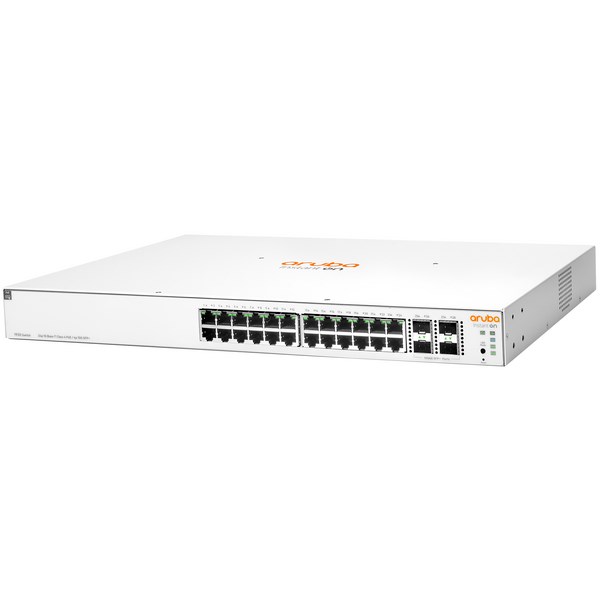

The Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch from the 1930 Switch Series is an affordable and easy-to-deploy, smart-managed, fixed-configuration Gigabit switch designed for today’s bandwidth-heavy applications. The cloud-hosted web interface and the Instant On mobile app make it easy to set up the 1930 switch quickly, then monitor and manage it from anywhere at any time. You can also manage it using the local Web UI. Aruba’s future-ready, built-in security features protect your network from unauthorized access, keeping your business data safe. IEEE 802.1X, MAC authentication, VLANs, Network Access Control (ACL), and Port Security allow you to segment traffic, defining and/or restricting access to each area of the network. It also provides a higher number of available SFP and SFP+ ports along with available copper Ethernet ports. Fiber connectivity provides higher uplink bandwidth and expanded options with more PoE across longer distances than copper cabling can support. Save time and money while getting the flexibility you crave with Power over Ethernet (PoE) technology. The 1930 switch series is ready to deploy in 8-, 24-, and 48-port for non-PoE and Class 4 PoE (i.e., PoE+) models. Up to 30W of power per port means you can deploy innovative 802.11ac wireless technology to maximize productivity. Aruba Instant On switches are designed to complement the sleek and clean look of the Instant On access points, while blending discreetly into your environment. The 8-port models, as well as the 24- and 48-port non PoE+ models, are fanless, making them ideal for quiet office deployments. Port mirroring enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring. You can set the locator LED on a specific switch to either turn on, blink, or turn off to easily locate a switch within a rack of similar switches. When green Ethernet features are enabled, the switch provides an estimated cumulative energy savings. The 1930 switch series segments voice traffic to dedicated voice networks for optimal performance. It automatically recognizes IP phones and prioritizes voice traffic and has advanced features like basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 IPv4 static routing, and ACLs.
• A switch that has all the features you need, and the ones you really want
• Simple, secure, and flexible
• Advanced control, management, and security
• SFP/SFP+ fiber connectivity that goes the distance
• PoE for the people
• Strong, sleek, silent type
• Reliability, troubleshooting, performance
• Advanced QoS (Quality of Service) for traffic prioritization
• Technical Specs:
• Gigabit Copper Ports: 24
• Uplinks: 4 SFP+ 1/10GbE ports
• Throughput capacity (Mpps): 95.23 Mpps
• Switching capacity: 128 Gbps
• Reliability MTBF (years): 76
• Maximum power rating: 248.7 W
• Dimensions: 442.5x264.7x43.9mm (wxdxh)
• Weight: 3.49kg (7.693lb)
• Model number: JL683B
